VersiPave 24P

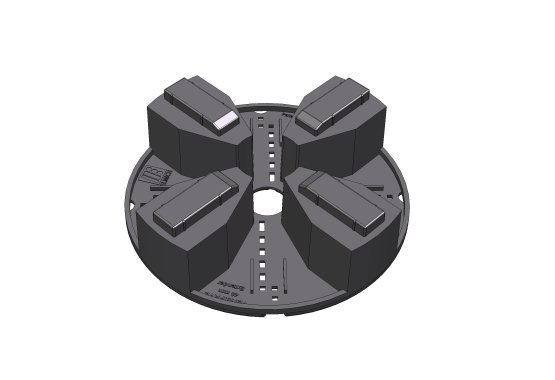

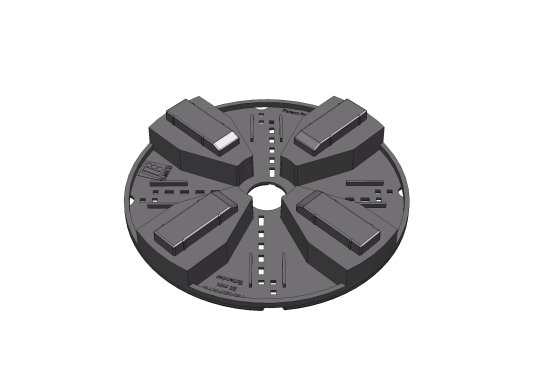

VersiPave 24P is a paver support pedestal engineered by Elmich to reduce material, construction and lifecycle costs.

Height range may be increased using VP-20E and/or VP-40E extenders.

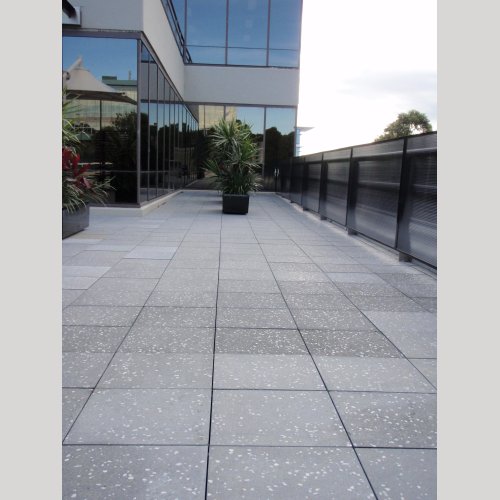

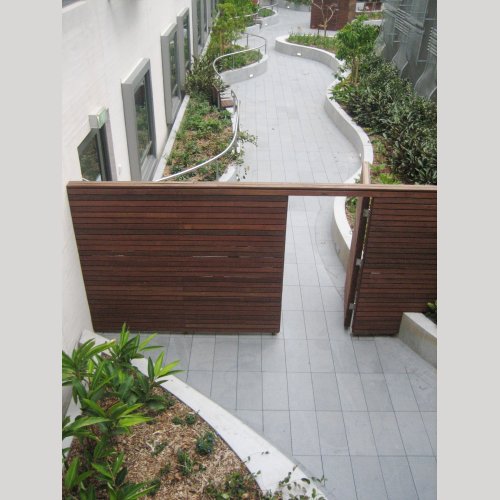

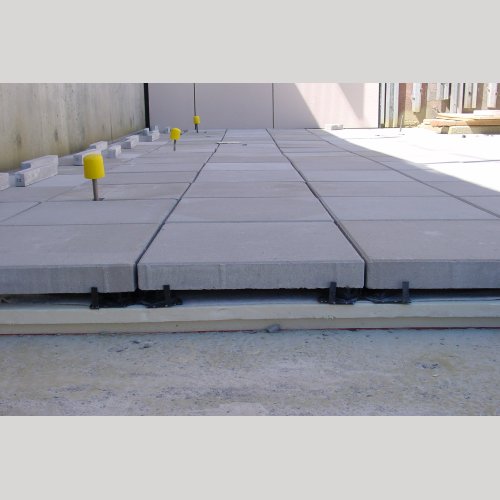

VersiPave is used in areas such as balconies, swimming pool surrounds and courtyards.

• Rapid drainage / ventilation from below the surface, preventing the formation of puddles on the decking
• Panels can be easily removed for inspection or audit purposes on the roof
• Reduces efflorescence, algae and panel installation costs

• Due to cavity between base and plate the thermal and acoustic insulation improved
• no need for sand or gravel bed

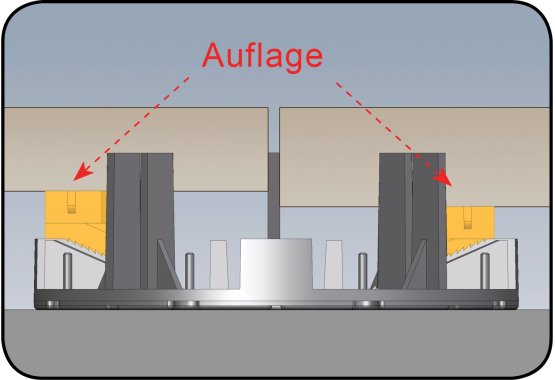

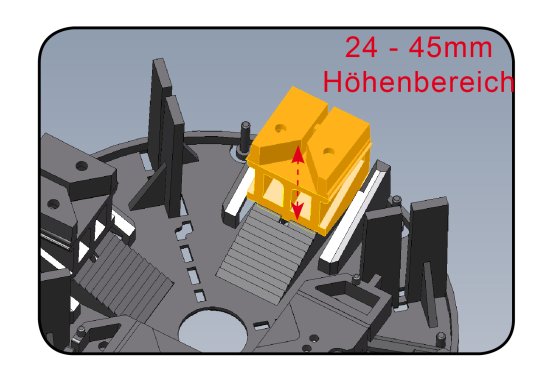

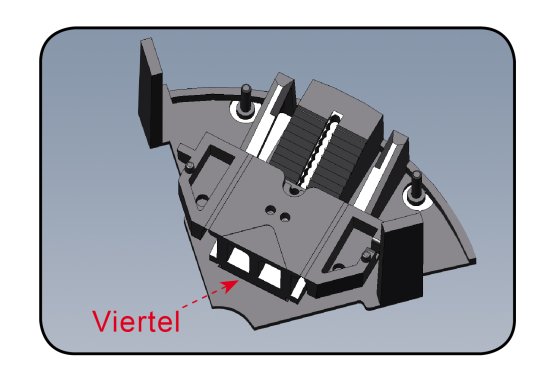

• pedestal can be divided into four. Each part has a rectangular support that is height-adjustable "snap-in". The height adjustment is in 1 mm increments, so that a horizontal surface can be realized

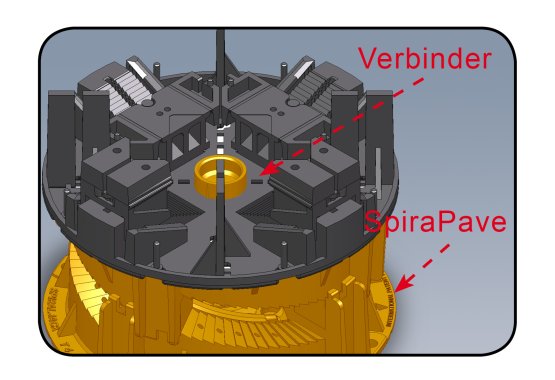

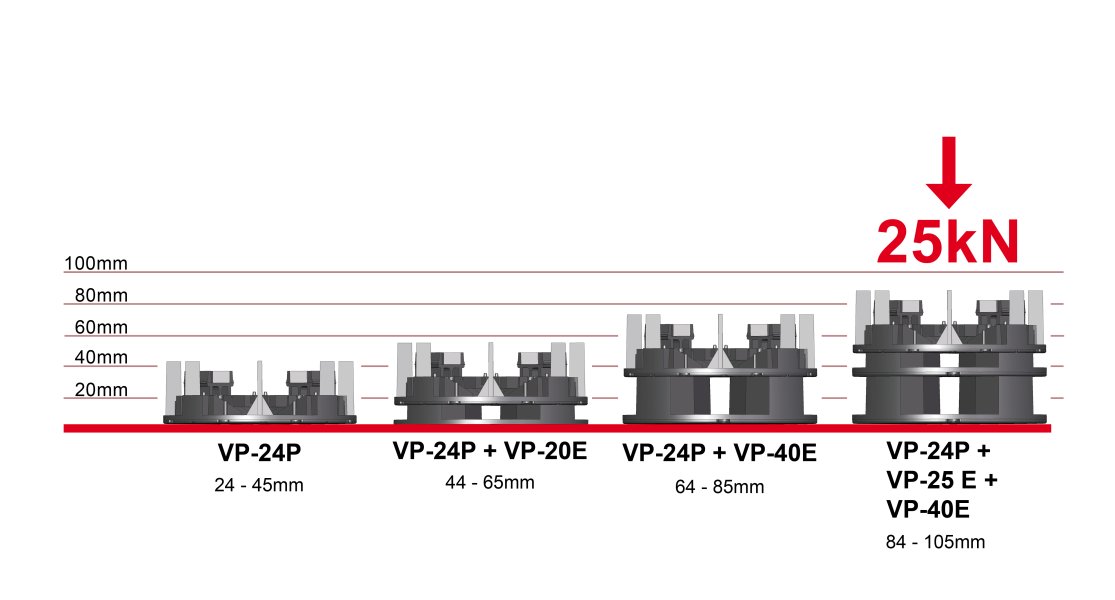

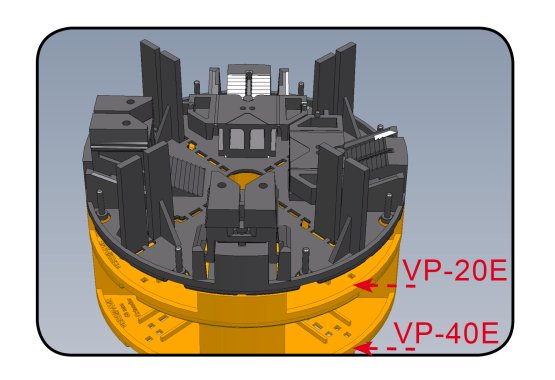

• pedestal can be adjusted by means of an extension part up to 105 mm. The extensions are available in heights of 20mm (20E) and 40mm (40E)
• The weight load per complete VersiPave is 2.5 tonnes

1.Determining the amounts of VersiPave needed because each disk format in relation to the complete surface to be laid.

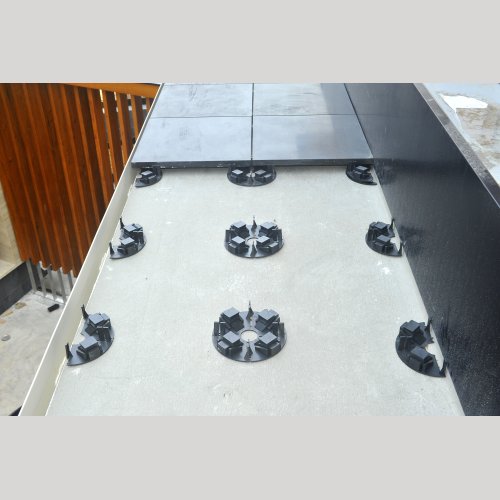

2. Selecting the cross points of each corner

3.  For laying in corners or along walls, statements VersiPave and extensions are broken according to the breaklines.

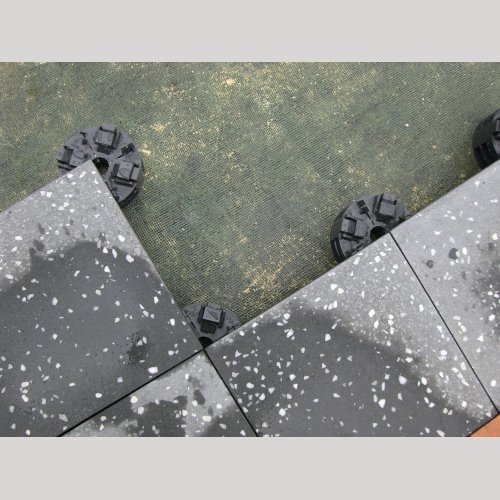

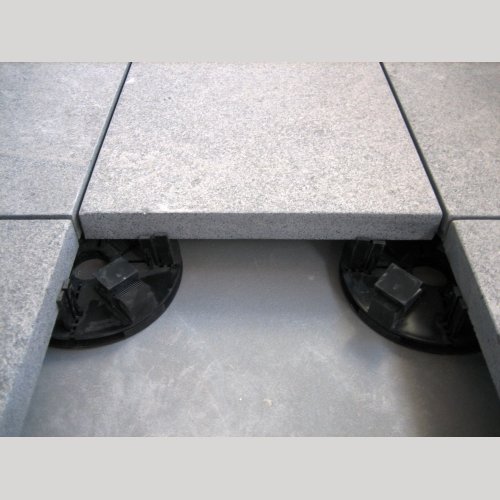

4. Installing the panels on VersiPave. Set VersiPave 24P on the gewüschnte height.

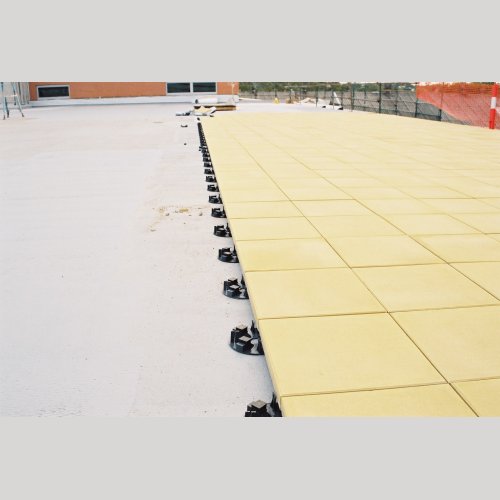

5. Starting laying in a corner and subsequent pavers along a wall edge.

Material: recycled polypropilene

Colour: black

Height range:

VersiPave 24P                   24 - 45mm
VersiPave 20E Extender     20mm
VersiPave 40E Extender     40mm

Diameter:                162mm

Height adjusment: in 1-mm steps

Height of joint part: 40 mm

Gap width: 4 mm

Maximum pressure loading: with the use of extension (altogether 153 mm) > 2.0 tons

Biological resistance:
Resistant to mold, algae

chemical resistance:
Resistant to oil, acids, alkalis and bitumen
